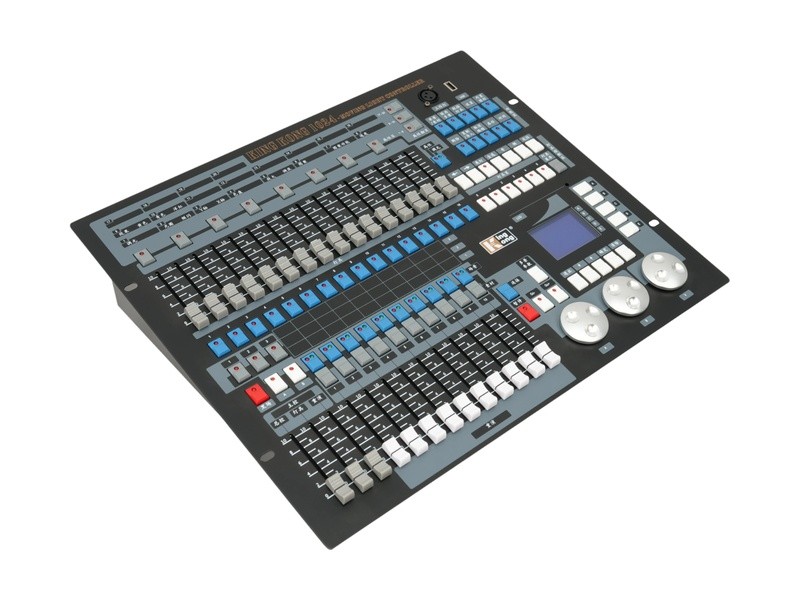

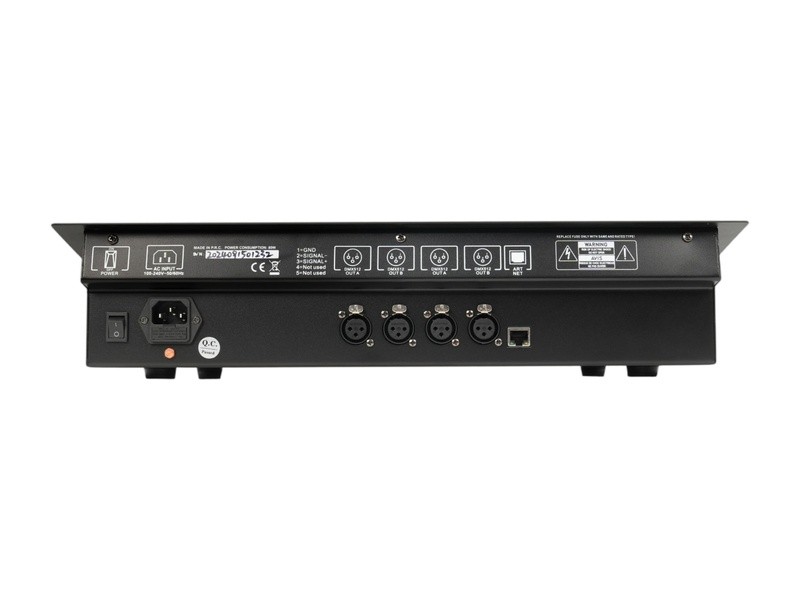

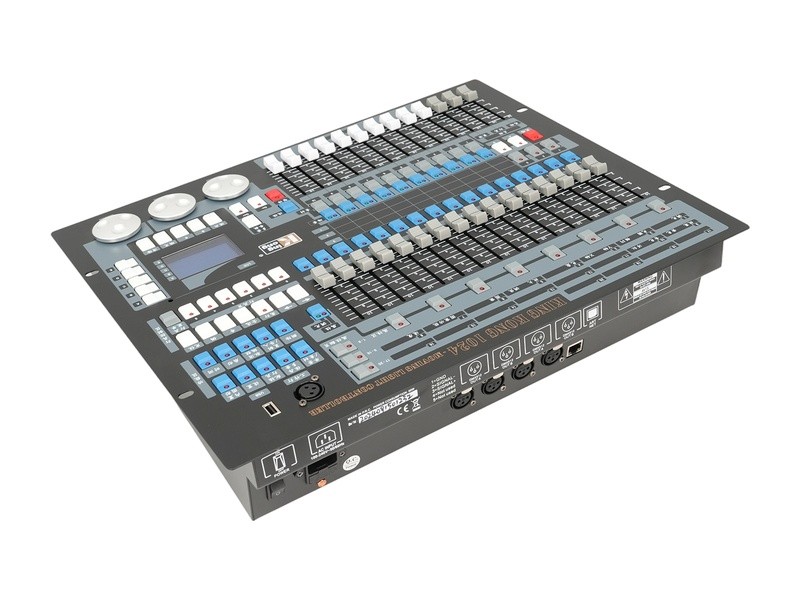

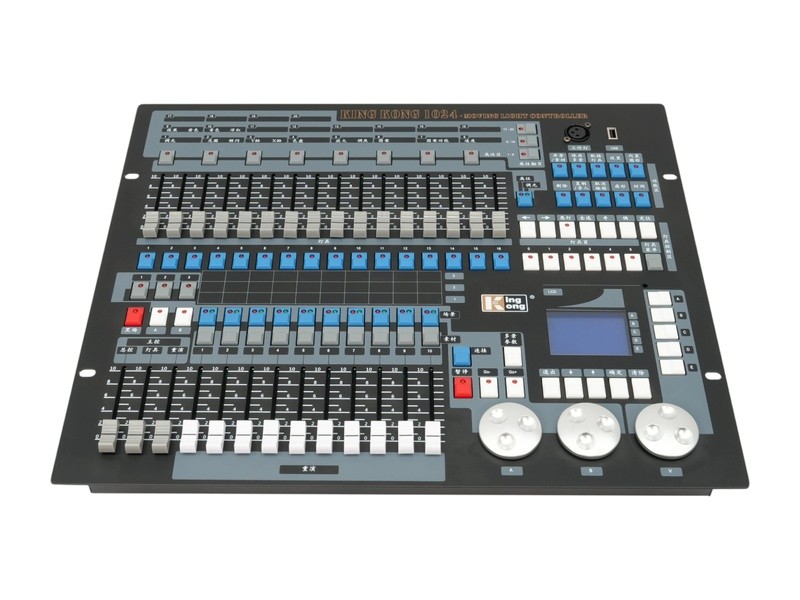

KK-1024

Model: KK-1024

Power Input: AC 100-240V / 50-60Hz

Display & Operation: Backlit LCD with Chinese/English switchable interface, 12 submaster faders (support direct selection + fader control)

Effect Engine: Built-in 227 effects (circle, spiral, rainbow, chase, etc.), independently adjustable effect parameters (amplitude/speed/interval/wave/direction), 5 storable effects per scene, 10 simultaneously executable effects

Advanced Control: Scene overlap function, effect width parameter

Attribute Quick Control: Adjust fixture attributes via preset faders

Channel Advanced Settings: DMX address reassignment, pan/tilt swap, channel reverse output

Safety & Backup: Power-off data retention, USB backup/import (shared with same-model consoles)

DMX Output: 4 optically isolated DMX512 ports (A/B dual signal paths), DMX512/1990 compliant, max. 1024 DMX channels

Network Control: 1x Art-Net port (UDP protocol), compatible with lighting simulators for real-time output

Fixture Capacity: Controls max. 120 moving heads or 120 dimmer channels

Trigger & Sync: Built-in timecode + external MIDI trigger → One-touch audio-light sync

Wireless Control: Mobile APP control, auto-play program at startup

Pre-programming & Upgrade: Offline pre-programming (time-saving), remote firmware upgrades (feature expandable)

Emergency Control: Instant blackout, scene interlock

Optional Accessory: Professional gooseneck worklight (indoor/outdoor use)

Dimensions: 515 × 460 × 120mm

Weight: 8.3kg

Package Dimensions: 620 × 525 × 220mm

Package Weight: 11.3kg
