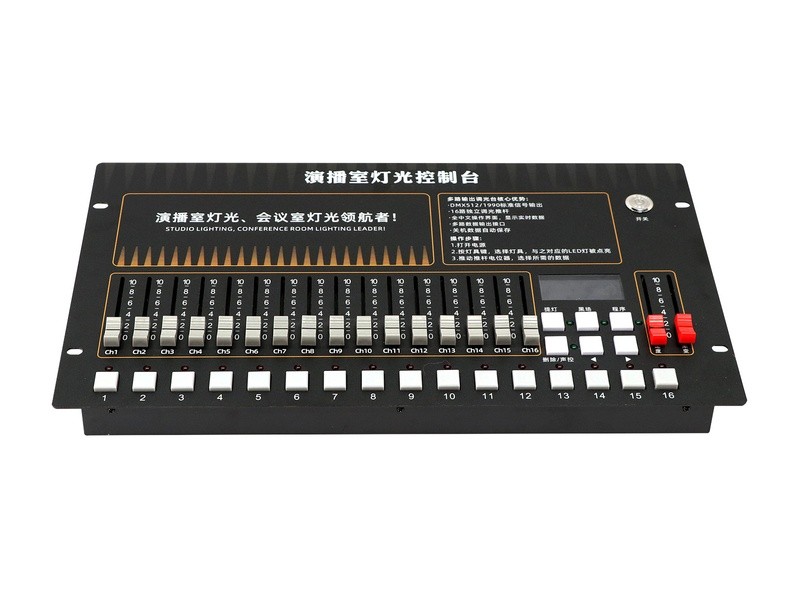

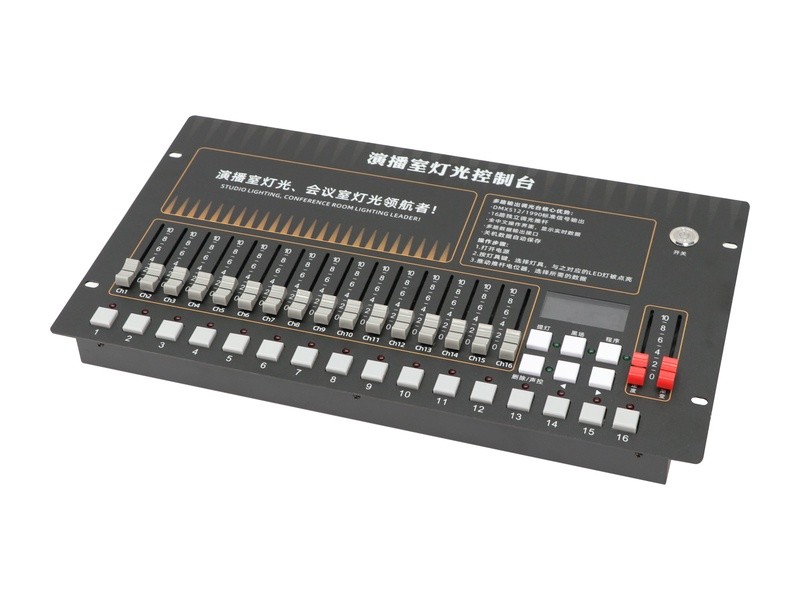

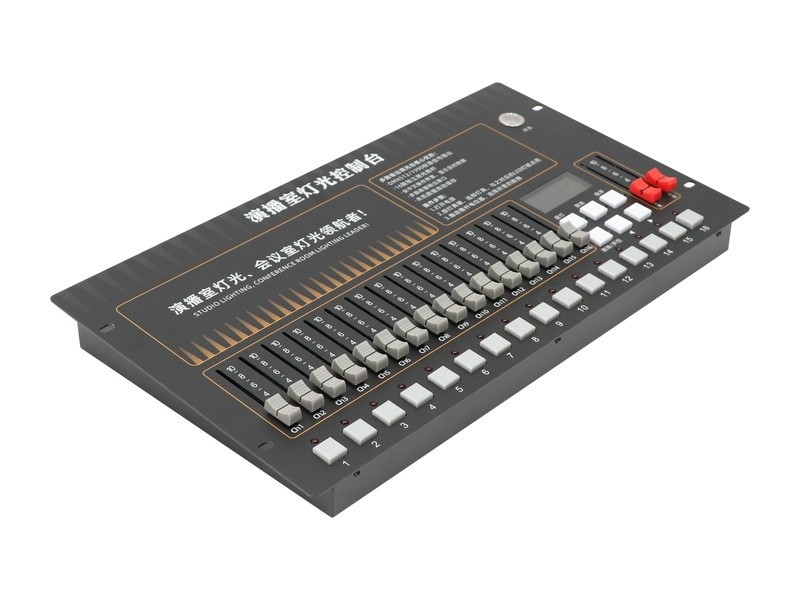

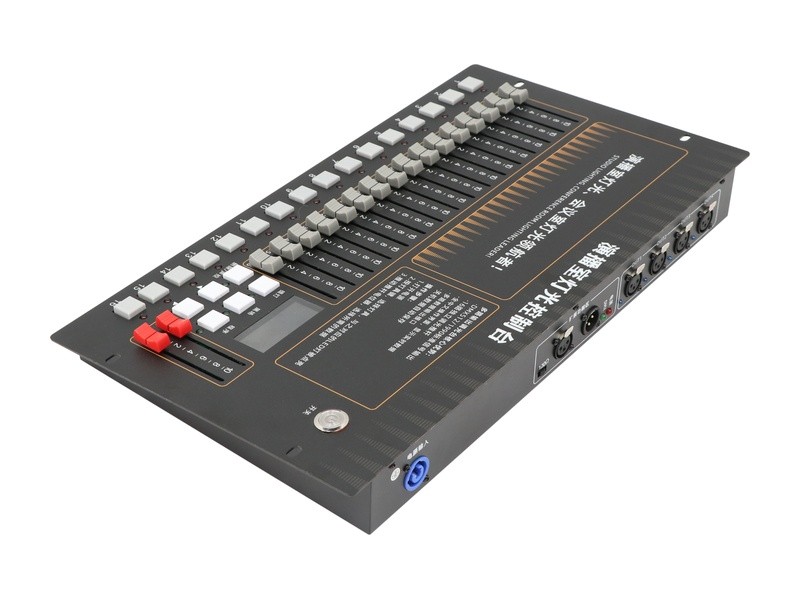

KZT-2600

Model: KZT-2600

Voltage: 220 V AC, 50-60 Hz

Controllable Fixtures: 16 groups

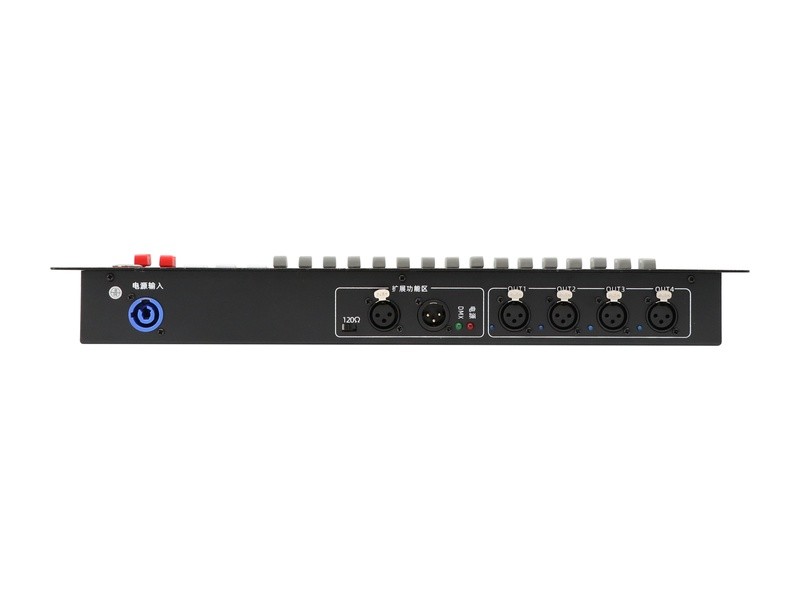

DMX Connector: 3-pin XLR

Power Input: 16A aviation socket

Signal Output: DMX512 compatible

Control Channels: 256 channels

Numeric Keys: 1-16 (program selection + fixture control)

Bank/Scene: Programmable scenes

Display: LCD screen

Blackout: Dedicated blackout key (zero output)

Fade Control: Inter-program transition time

Speed Control: Step duration adjustment

Program Playback: Supported

Manual Fixture Control: Supported

Sound Activation: Audio-triggered program operation

Environment: Non-corrosive, ventilated areas

Color: Black + orange

Dimensions: 482 × 270 × 50 mm

Package Size: 500 × 375 × 180 mm

Net Weight: 3.54 kg

Gross Weight: 4.45 kg

Signal Enhancement:  4 opto-isolated outputs | Independent power supply per channel | High anti-interference capability
