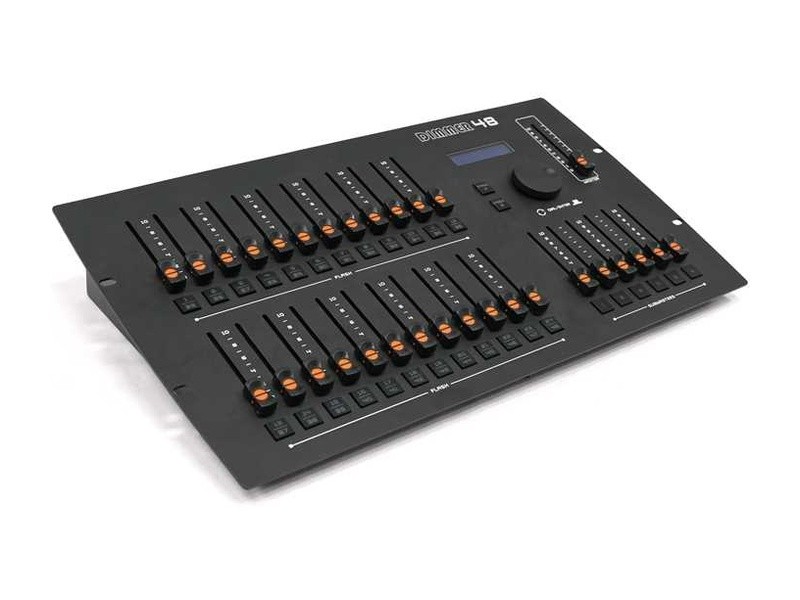

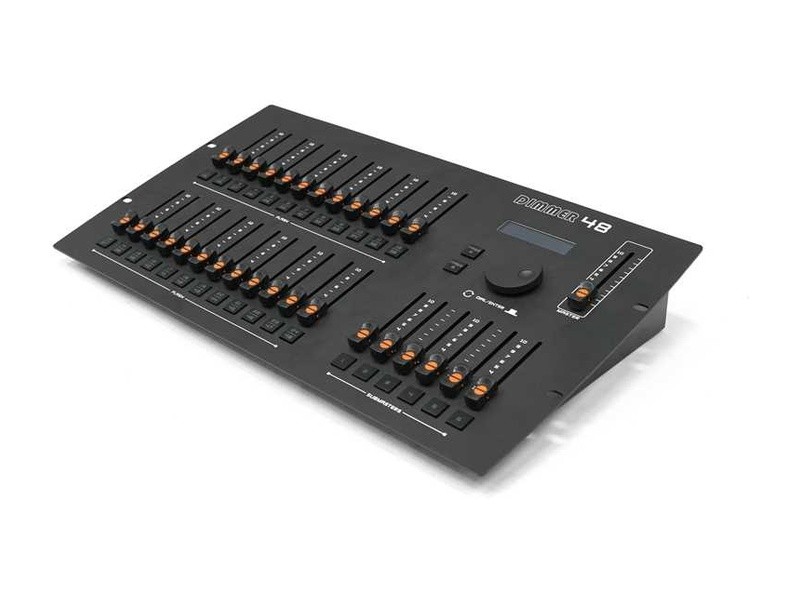

KZT-4800

Model: KZT-4800

Power Input: 88-256 V AC, 50-60 Hz

Power Output: 88-256 V AC, 50-60 Hz

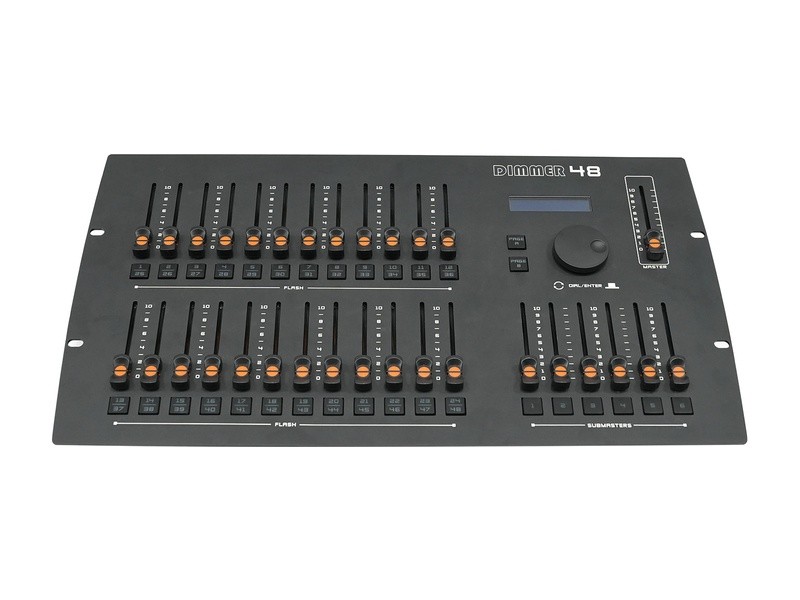

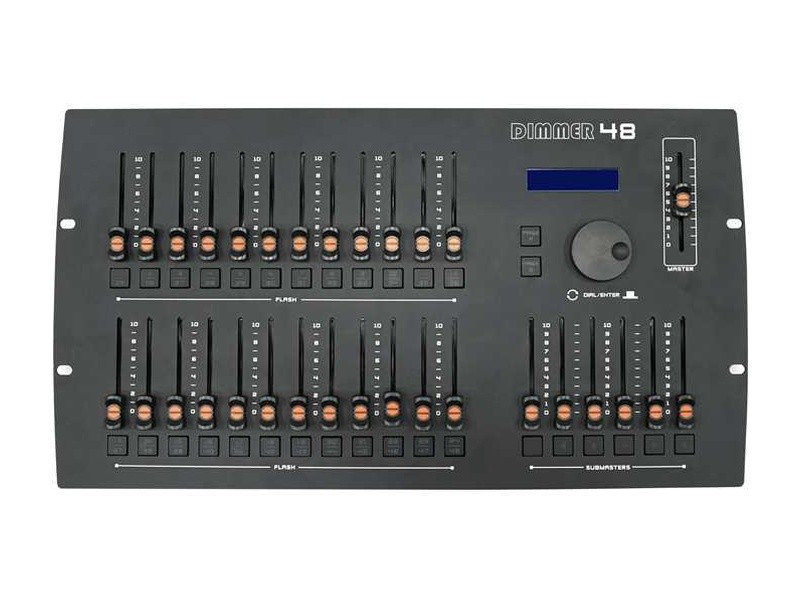

Control System:

- Flash button: Channel momentary output

- Fine/Fine+ buttons: Dimming channel fine adjustment

- DIAL/ENTER encoder: Program selection/storage confirmation

- Master fader: Global brightness control

- Submaster faders: Group brightness control

- Submaster buttons: Group momentary output

- Channel faders 1-48: Individual brightness control

- LAMP ONLY: LED worklight socket

Scene Management:

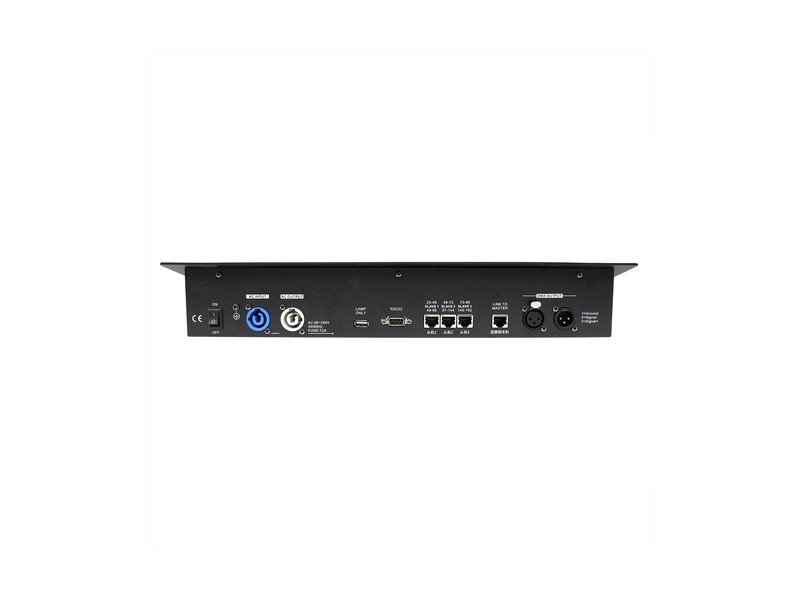

- RS232 port: Central control integration (9600 baud)

- SLAVE port: Channel expansion (slave mode)

- LINK TO MASTER port: Master unit connection

- Manual dimming: Master max + channel adjustment

- Submaster storage: Master max → channel adjust → DIAL+SUBAMASTERS

- Master/slave config: RJ45 cable (LINK TO MASTER ↔ SLAVE)

DMX Output: XLR-3 pin female

Dimensions: 482 × 265 × 75 mm

Weight: 2.65 kg

Features:

DMX512 protocol | 48 isolated dimming channels | RS232 remote recall | Encoder channel monitoring | 4-unit expandable (192 channels) | Fine adjustment | LCD display | Power-fail memory
