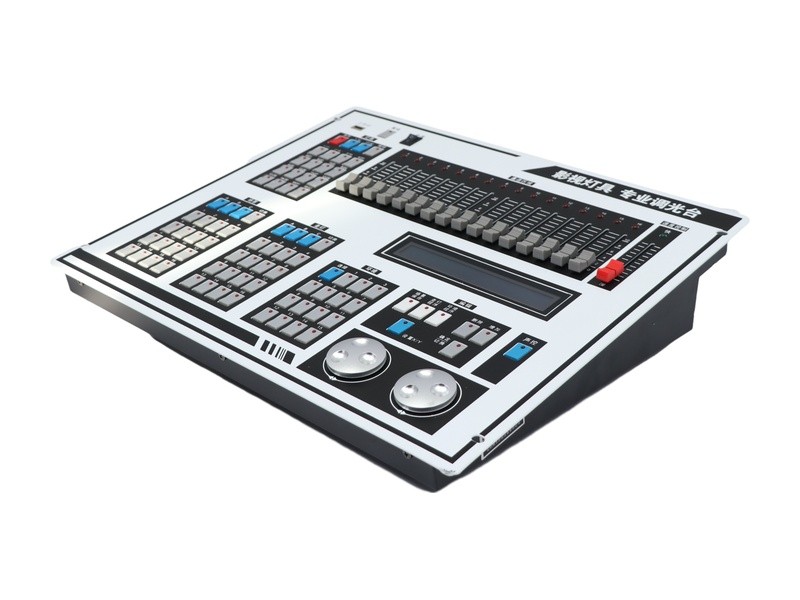

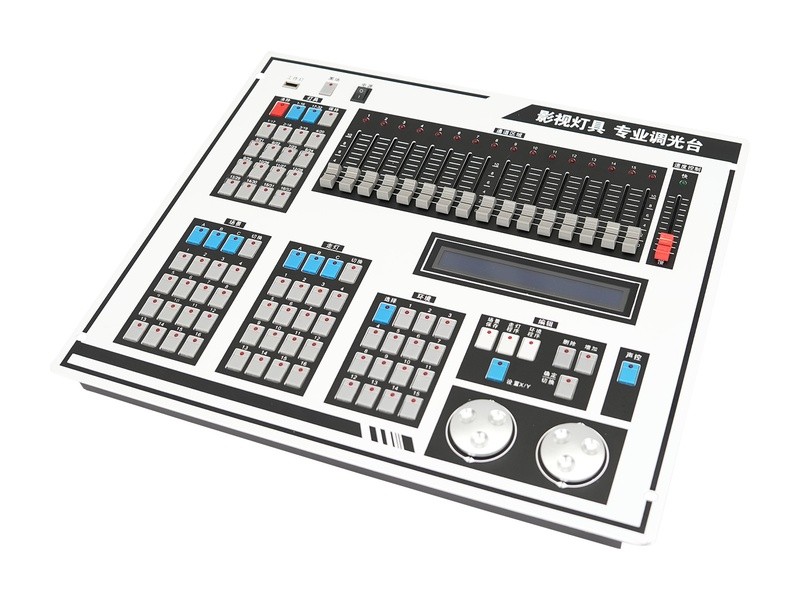

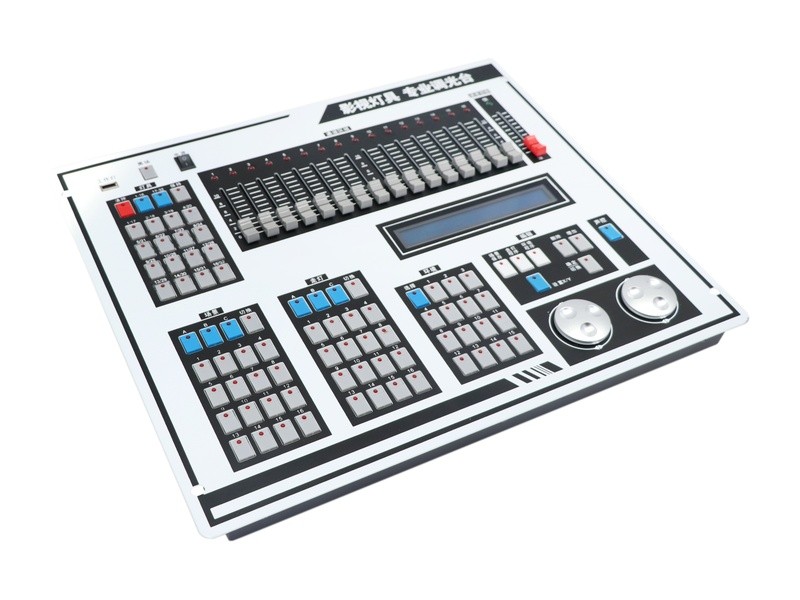

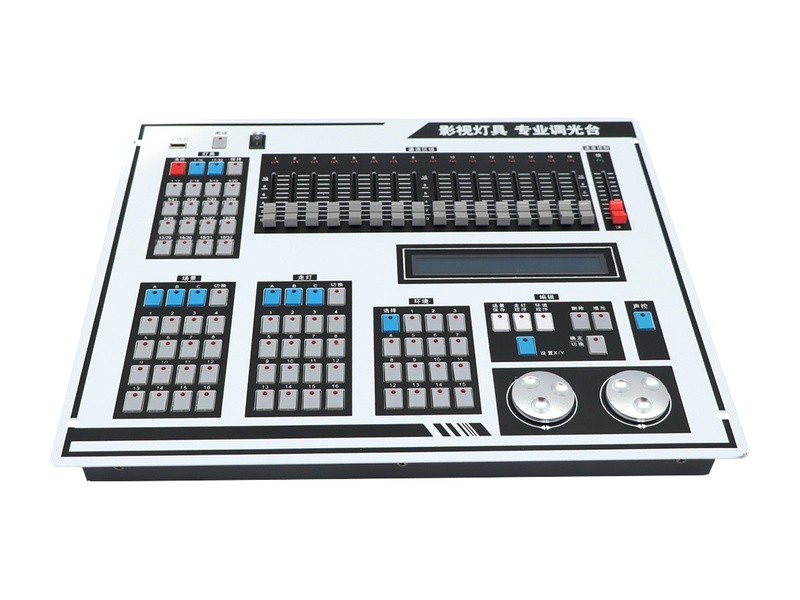

KZT-512

Model: KZT-512

Application: Dedicated moving head controller

Processor: Dual-CPU co-processing with high-speed microchip

Control Capacity: 32 units × 16-channel moving heads

Control Precision: 16-bit X/Y axis positioning

DMX Channels: 512 channels (DMX512/1990 compliant)

Output Ports: 2 opto-isolated ports (2000VDC surge protection)

Display: Backlit LCD for real-time monitoring

Faders: 16 channel faders + 1 speed master

Program Storage: 1600 steps / 48 chase programs (100 steps max per program)

Scenes: 48 instant recallable scenes

Operation Capacity: 4 simultaneous chases + 48 scenes + 32 manual controls

Macro Keys: 15 quick-access macro keys (scene/chase/manual combos)

Music Trigger: Line-in or built-in mic audio activation

Power Supply: Wide-range auto-switching PSU (90-260V AC)

Data Retention: Non-volatile memory

Control Panel: Fixture select/Scene/Chase/Macro/Fader/Edit zones

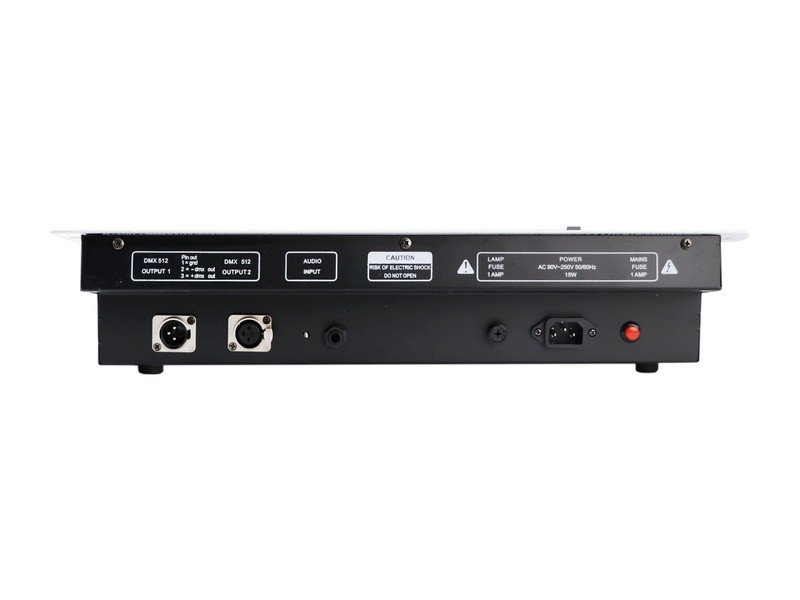

Rear Panel: DMX OUT (male & female XLR)

Weight: 14 kg

Dimensions: 483 × 400 × 105 mm
