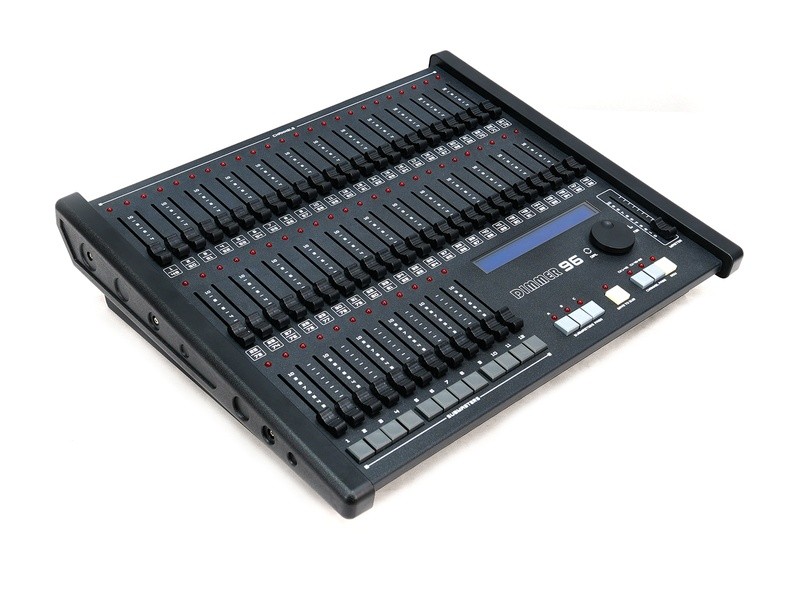

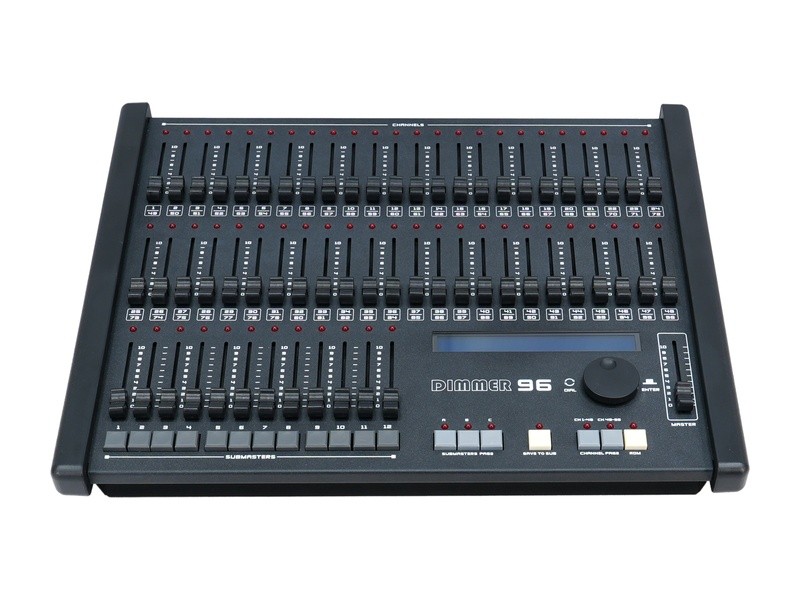

KZT-9600

Model: KZT-9600

Power Input: AC 88~256V 50/60Hz

Power Output: AC 88~256V 50/60Hz

Flash Button: Executes channel jog output

Fine/Fine+ Buttons: Fine-tune current dimming channel

DIAL/ENTER Digital Wheel: Select/view items, confirm/store submasters

Master Fader: Adjusts overall channel brightness

Submaster Fader: Controls submaster brightness value

Submaster Button: Executes submaster jog output

Centralized Remote Control: Connect LINK TO MASTER and SLAVE interfaces via RJ45 cable

Manual Dimming: Push Master fader to max; adjust brightness with faders 1~96; rotate digital wheel to view values

Store Submaster: Push Master fader to max; adjust channel brightness; hold DIAL/ENTER wheel, then press SUBMASTERS button 16 to save

Product Features: DMX512 protocol; 96 isolated dimming channels; RS232 connectivity for remote submaster recall; digital wheel for channel value viewing; master/slave expansion (up to 4 units, 384 channels); Fine+/Fine buttons for channel fine-tuning; large LCD display; memory protection during power loss

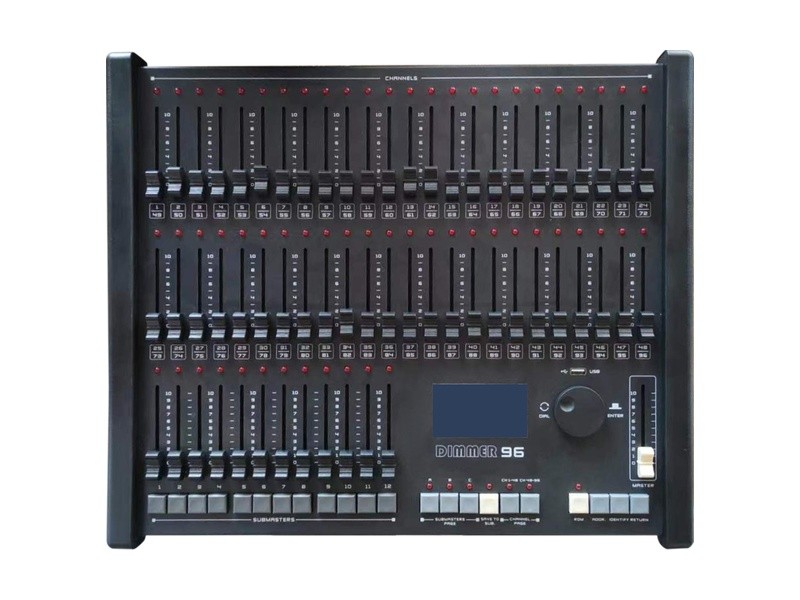

Channel Faders 1~96: Directly control each channel's brightness

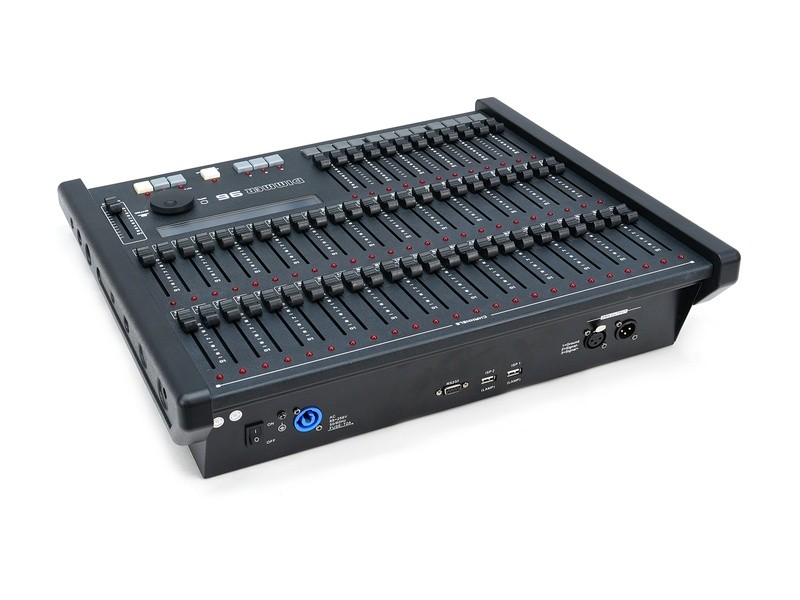

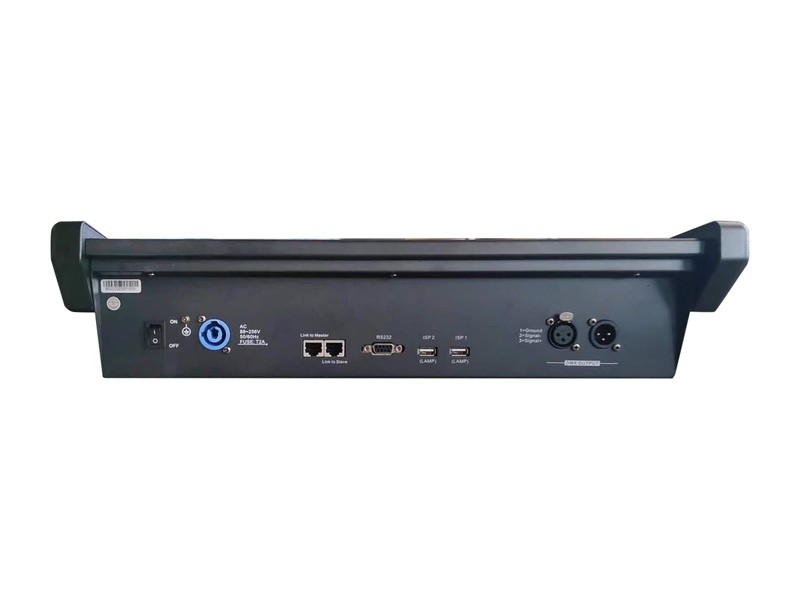

LAMP ONLY: LED work light socket

RS232 Interface: Connects to central control for remote submaster recall

SLAVE Interface: Expands channels via master/slave connection

LINK TO MASTER Interface: Connect to master unit when operating as slave

Master/Slave Configuration: Baud rate 9600; RS232 interface connects to central control system

DMX Signal Output Connector: XLRD3F

Dimensions: 498*420*115mm

Weight: 7.3kg
