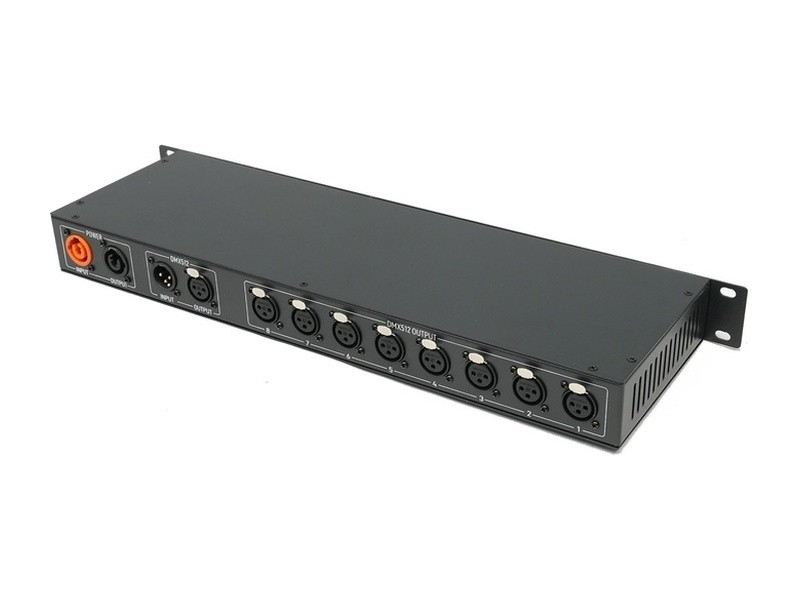

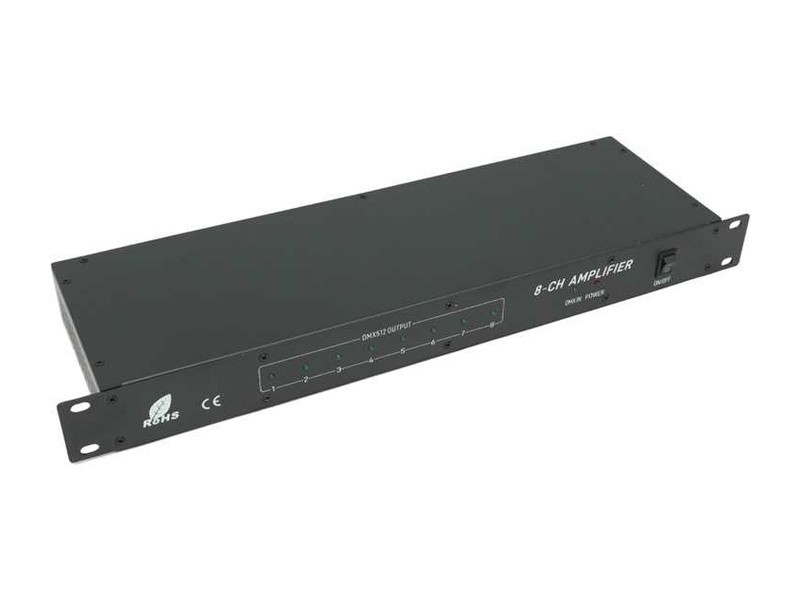

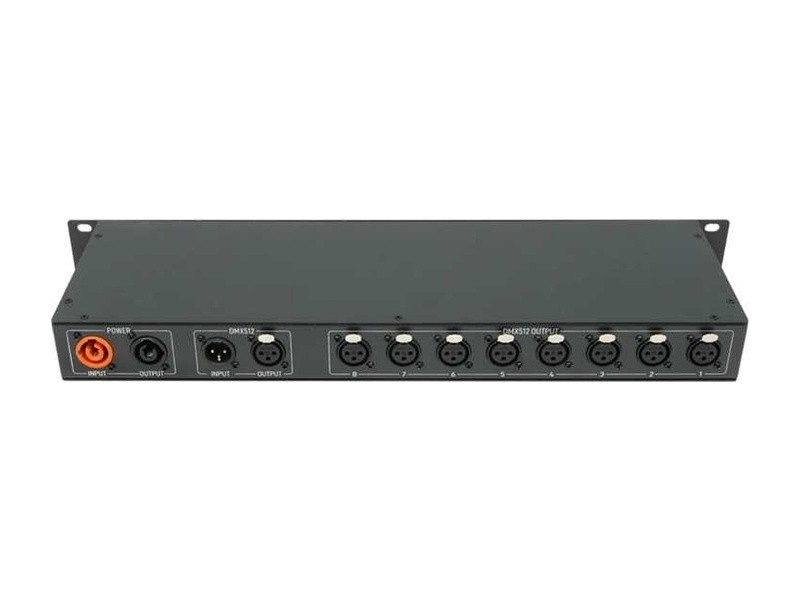

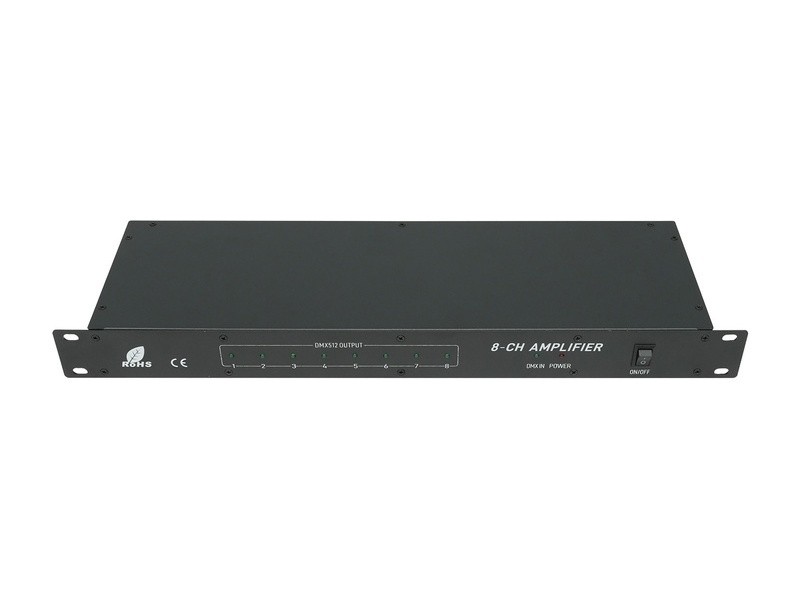

FDQ-HB08

Model: FDQ-HB08

Power Supply: AC 90V–240V, 50Hz/60Hz, 15W

Digital Signal Protocol: DMX512/1900 communication protocol standard

Signal Connectors: Input XLR-3-M, Output XLR-3-F

Signal Input/Output: 1x signal input, 1x thru (direct) output, 8x electrically isolated distribution outputs

Dielectric Strength (Isolation Voltage): >AC 300V (input-to-output electrical isolation)

Function: Provides 8 independent amplified DMX signal outputs, effectively enhances DMX signal transmission capability and anti-interference performance; features opto-isolation for DMX signals to prevent mains high voltage from damaging the lighting console

Dimensions: 490×145×45mm

Weight: 1.85kg
