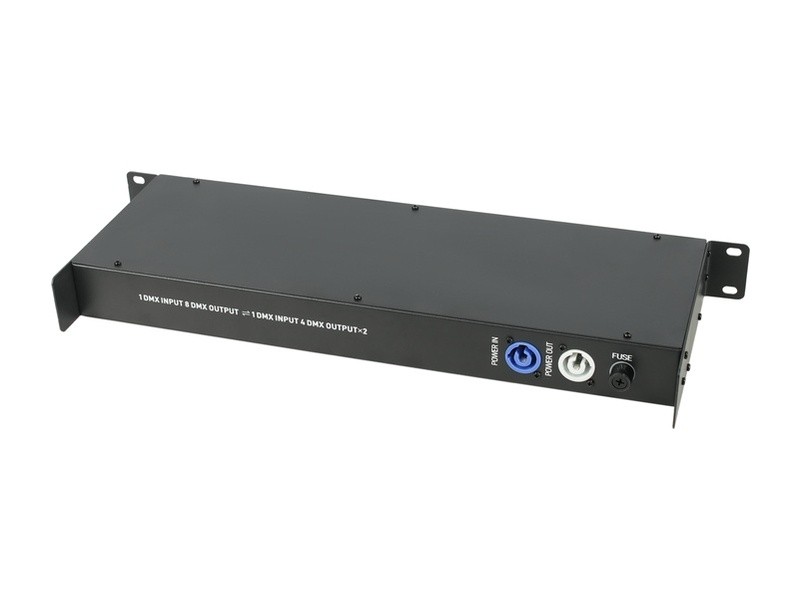

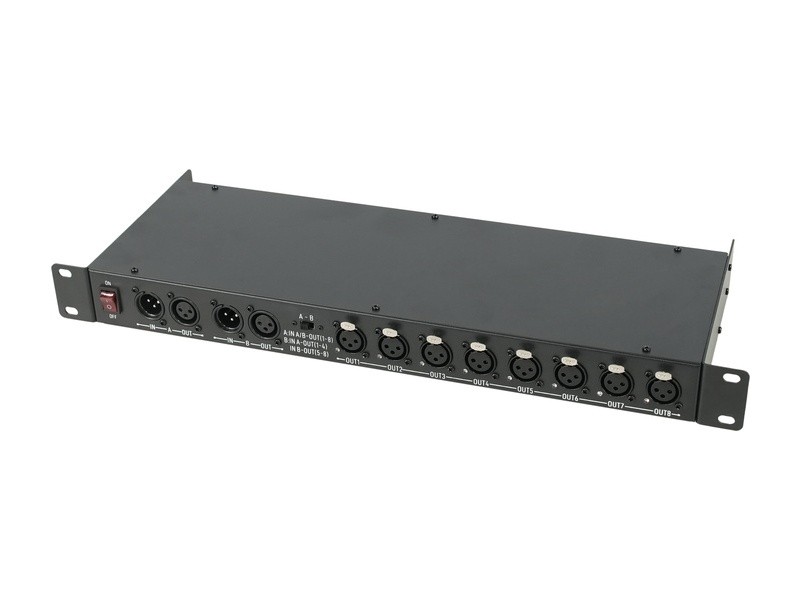

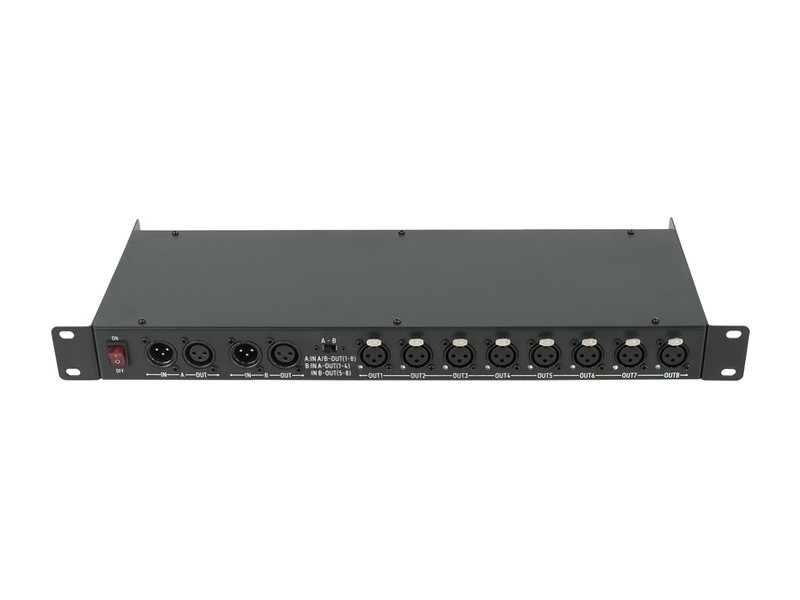

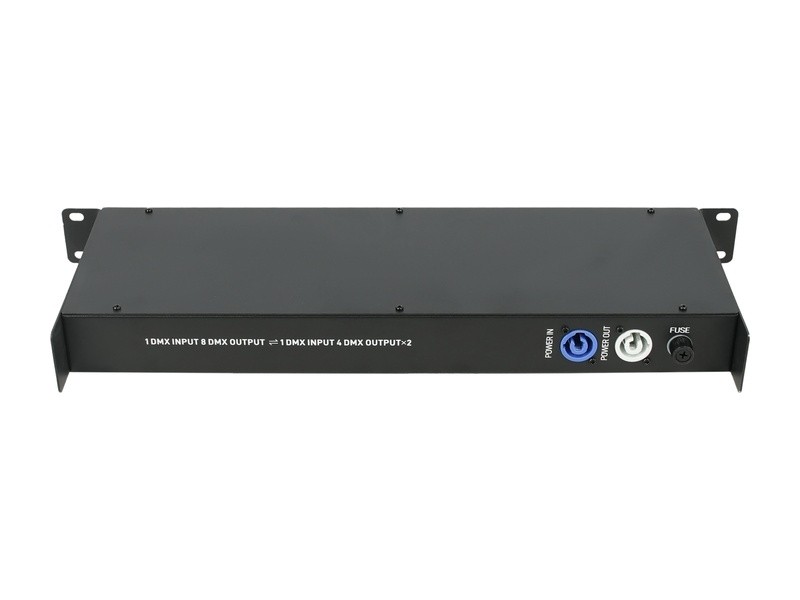

SPL-2418

Model: SPL-2418

Protocol: Standard DMX512/1990

Power Supply: DC 5V

Connector: 3-pin XLR (XLR-3)

Input Channels: 2 channels (Channel A, Channel B)

Output Channels: 8 independent isolated outputs

Indicators: Power LED, DMX signal LED, A/B channel indicator

Operating Modes:

Mode 1: 1-in-8 (1 input → 8 outputs)

Mode 2: 2-in-4 (2 inputs A/B, each with 4 outputs, manually selectable)

Operating Temperature: -10°C to +45°C (standard industrial/stage environment)

Functions: Signal amplification, reshaping, regeneration, extending transmission distance

Isolation Type: Opto-isolation (input–output & output–output)

Isolation Voltage: ≥1000V (prevents ground loops, resists interference and surge/lightning)

Load Capacity per Output: ≤32 standard DMX512 devices

Signal Latency: Extremely low, near-synchronous

Transmission Distance: Extendable to several hundred meters per output after amplification

Pin Configuration (Standard DMX): Pin 1 = GND, Pin 2 = DATA–, Pin 3 = DATA+

A/B Switching Method: Manual toggle switch

Switch to A: Only input A active, outputs follow signal A

Switch to B: Only input B active, outputs follow signal B

Application: Master/backup console, dual signal sources, redundant backup for live performances

Typical Uses: Stage lighting, LED architectural lighting, DMX signal distribution for bars/studios; long-distance signal amplification; multi-channel isolated distribution to avoid interference and equipment damage

Dimensions: 490×175×50 mm
