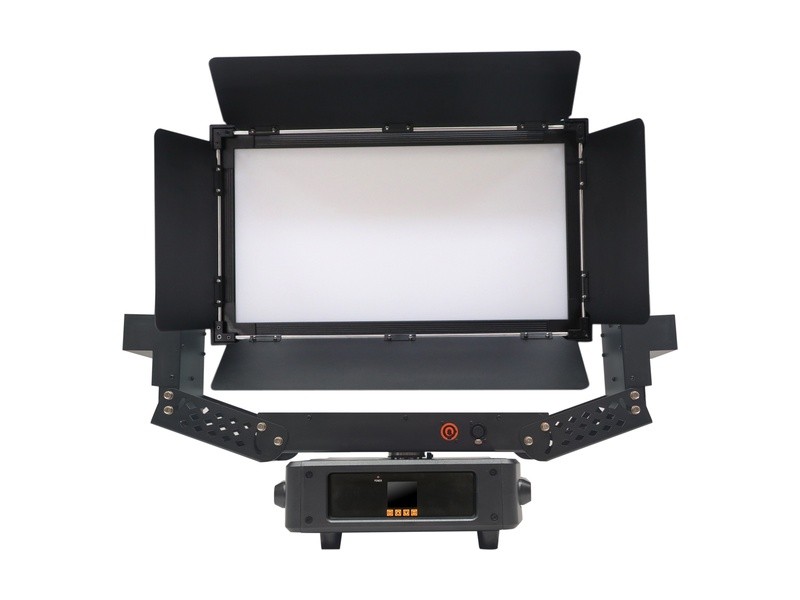

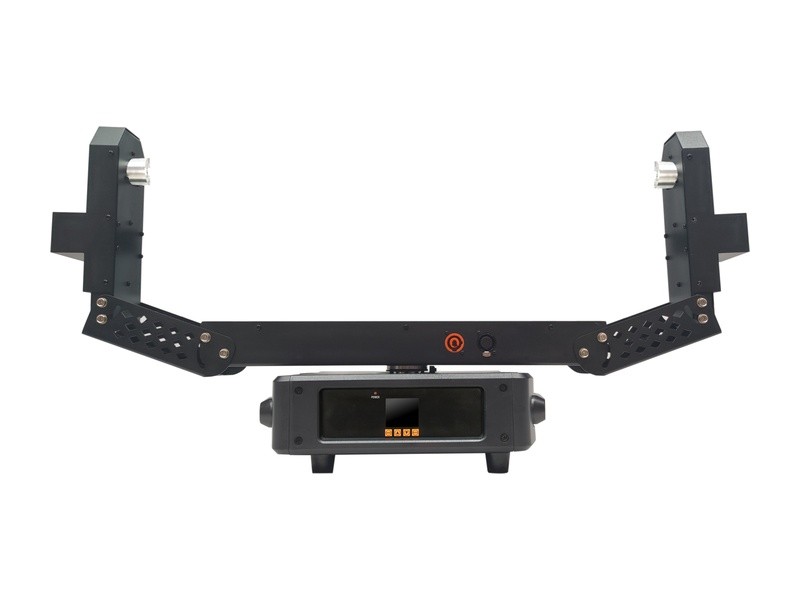

DDYB-150ZP

Model: DDYB-150ZP

Input Voltage: AC 100-240V 50/60Hz

Horizontal Scan: 270°

Vertical Scan: 180°

Control Mode: DMX512/RDM master/slave sync control, standalone operation

Display: 1.77-inch TFT LCD color screen (CN/EN)

Display Flip: Auto screen-off support

Signal Connection: 3-pin/5-pin XLR connectors, input signal isolation protection, stable anti-interference transmission

Power Connection: 16A 3-pin self-locking power in/out plugs, secure connection, daisy-chain design, easy installation

Operating Environment: -25℃~45℃

Mounting: Dual 1/4" quick-lock hanging points (horizontal/vertical convertible), one safety cable point; overhead hanging/floor placement, flexible installation

Material: ABS plastic + aluminum alloy, durable construction

Features: Multi-fixture compatibility, easy installation, strong adaptability; dual-sensor positioning, auto error-correction, auto reset; DMX motorized angle adjustment, precise light control

Load Dimensions: Max 660×380mm, Min 600×380mm

Applications: Studios/stage performances/banquet halls/multi-scenario use
