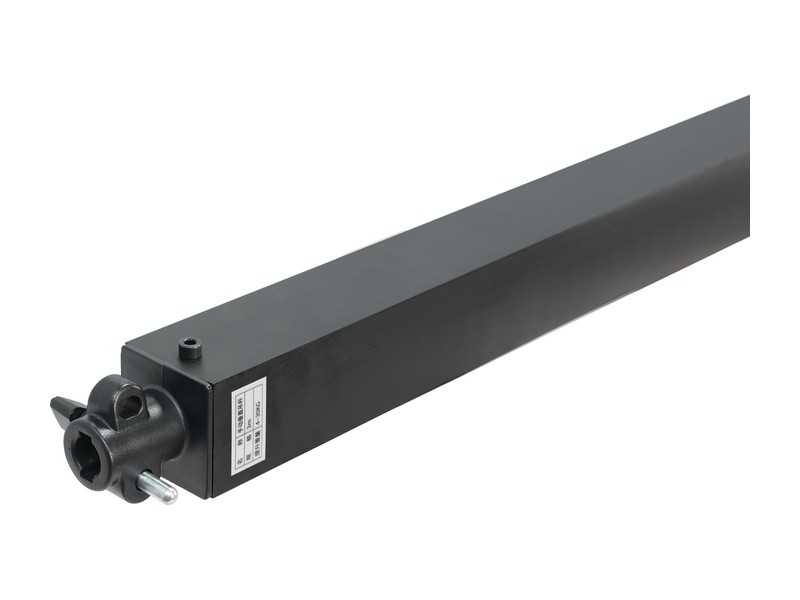

CZDG-3M

Model: CZDG-2M

Color: Black

Material: Aluminum alloy

Spring: Imported spring

Load Capacity: ≤10kg

Dimensions: Width 112mm × Thickness 85mm; Length options: 47cm (1m drop? Actually need to check: original says 长47cm/1米 – likely means 47cm for 1m travel? But better to keep literal: 47cm for 1m length, 64cm for 2m, 81cm for 3m, 97cm for 4m) – Clarification: The text lists lengths corresponding to different vertical travel distances: 47cm for 1m, 64cm for 2m, 81cm for 3m, 97cm for 4m.

Mechanism: Ratchet and pawl, vertical positioning error ≤1cm, easy tension adjustment

Fatigue & Corrosion Resistance: <1% variation after 10,000 cycles

Applications: Small and medium-sized studios, virtual studios, live streaming rooms, small stages, etc.

Key Features:

Ideal for studios with limited space and aesthetic requirements. Compared to standard hinges of similar load capacity, it is lighter, more compact, more attractive, easier to operate, and more practical.

Also suitable for studios with large numbers of lights — on a single track, the number of lights that can be hung from vertical suspension bars is significantly higher than with conventional hinges.

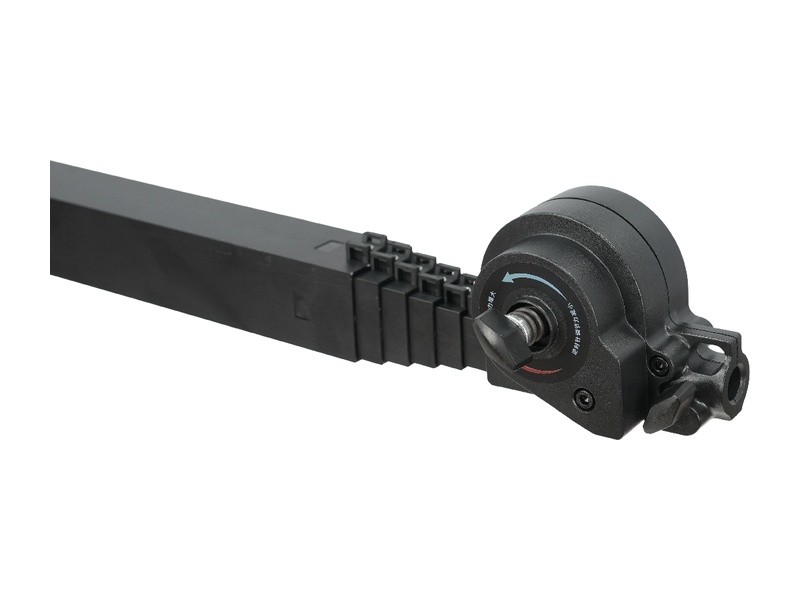

The vertical suspension bar operates through a combination of ratchet and pawl, friction, and constant force spring, enabling precise positioning and easy adjustment.
