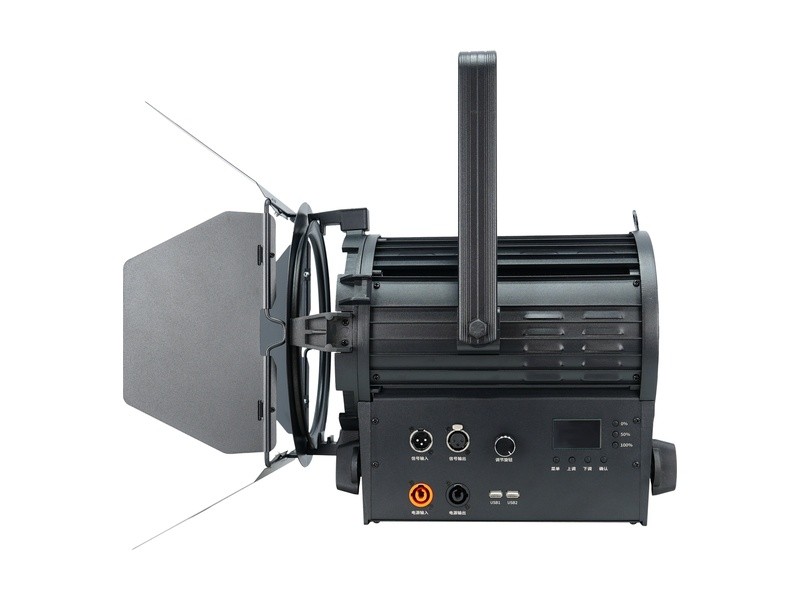

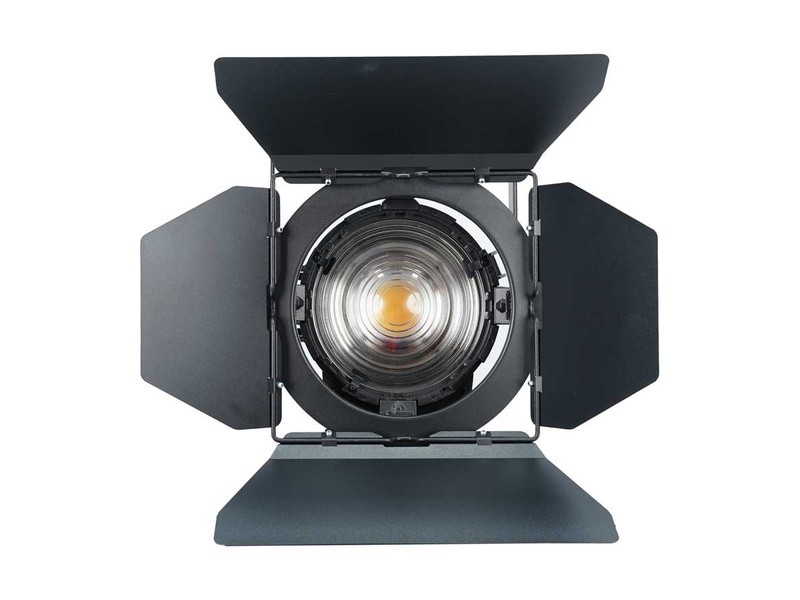

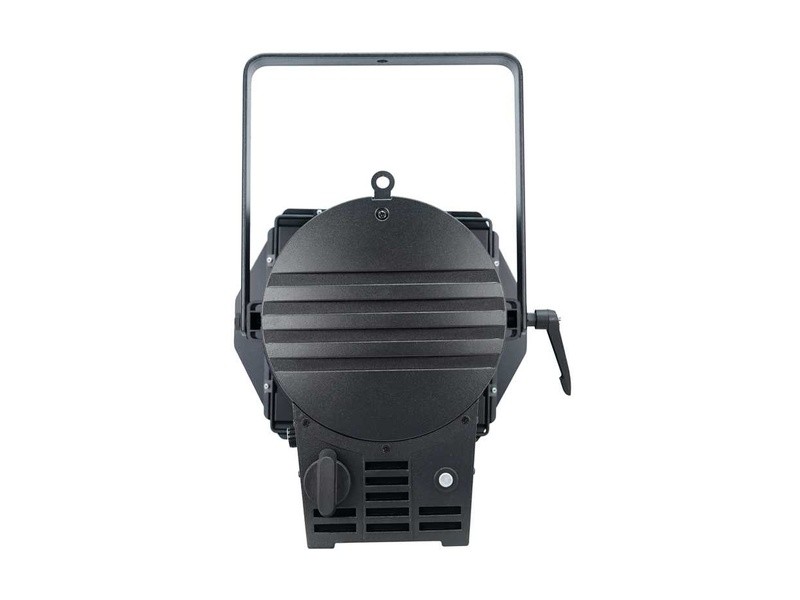

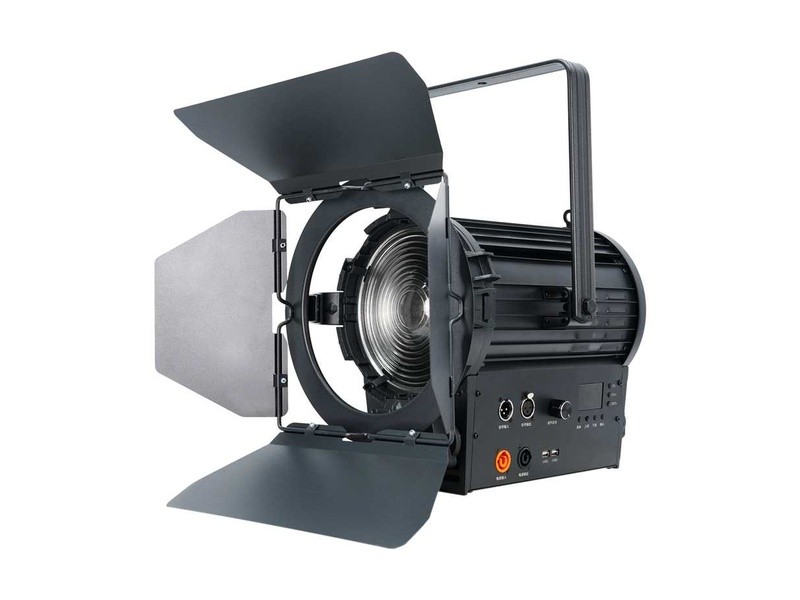

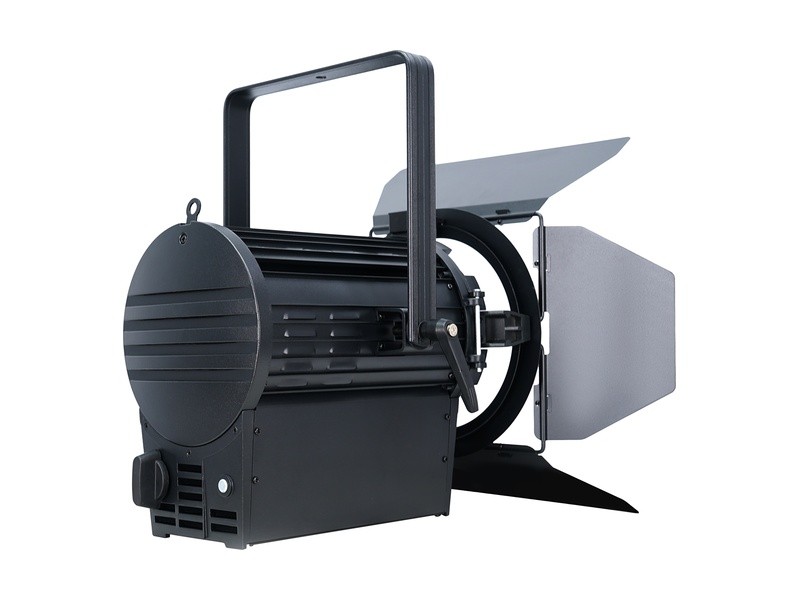

LED-J100V2DP

Model: LED-J100V2DP

Rated Power: 100W

Input Voltage: AC 110-240V, 50/60Hz

Light Source: High CRI LED for professional filming requirements

Color Rendering Index (CRI): Ra≥97

Color Temperature: 5600K

Display: LCD screen showing address code, brightness, color temperature, real-time temperature, grouping, and usage hours

Control Signal: DMX512

Dimming Resolution: 10,000-step

Dimming: 0%-100% linear dimming via knob/buttons/remote/DMX512; master/slave mode

Beam Angle: 25°-65°

Illuminance: Spotlight 35,062 lux@1m, 6,222 lux@3m, 2,715 lux@5m. Floodlight 10,447 lux@1m, 1,535 lux@3m, 626 lux@5m

Lens Diameter: 180mm

Lens: Premium Fresnel lens with high light efficiency and superior spot convergence

Barn Doors: 4-leaf system for precise beam shaping (equivalent to traditional spotlight barn doors)

Focus Adjustment: Knob-controlled focus

Scene Modes:   "Live Mode": Maintains constant illumination during broadcasts.  "Safety Mode": Prevents LED overheating with adaptive thermal management.  Last Scene Hold: Retains final settings upon signal loss for broadcast safety

Cooling System: Fanless cooling

Lifespan: ≥70,000 hours

Angle Adjustment: Manual yoke system for pan/tilt control

Features:  Dual USB ports,  Aluminum alloy housing,  Molded components for high reliability/precision,  Rugged and aesthetically designed

Dimensions: 410×380×365mm

Dimensions: 467×410×365mm,With Barn Doors

Weight: 8kg
