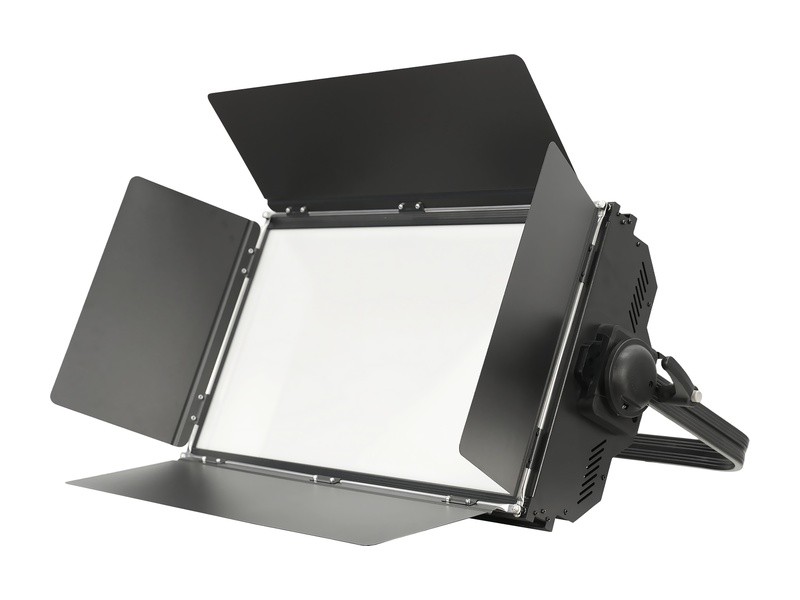

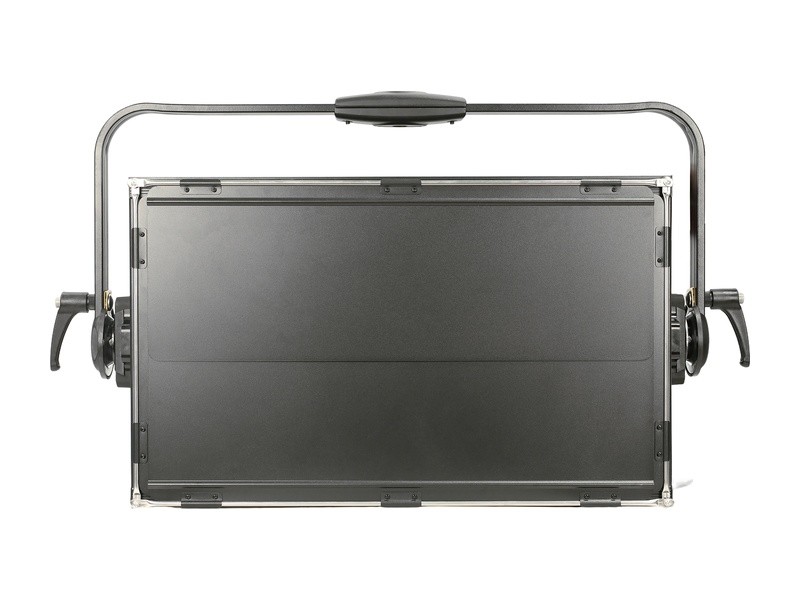

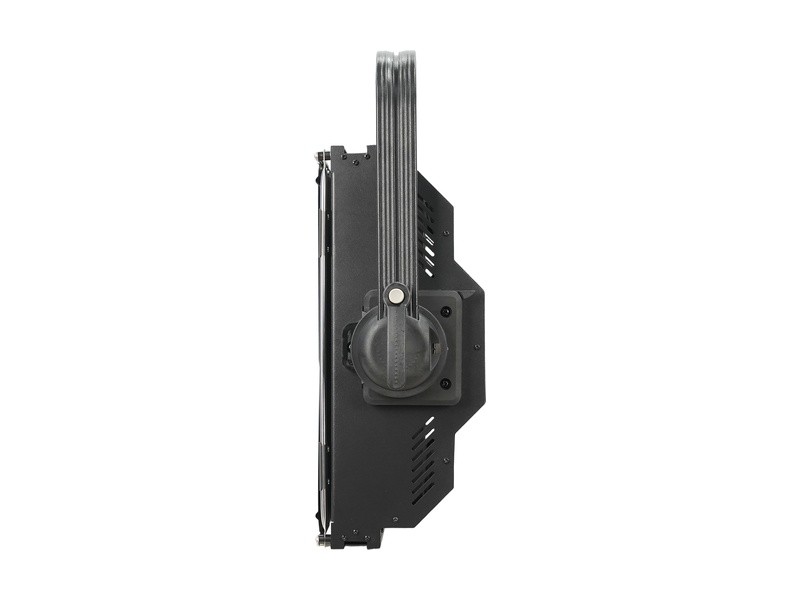

RGB-WW400

Product Model: RGB-WW400

Light Source: 4200 pieces LED beads, 840 pieces per color R/G/B/W1/W2, 0.5W per bead

Power Supply: AC 100V~240V, 50/60Hz wide voltage input

Total Power: 400W

Beam Angle: 120°

Light Source Life: ≥50000 hours

Color Temperature Range: 2000K~10000K continuously adjustable

CRI: Ra≥97, TLCI≥98

Color Intelligent Management Control System: Supports color calibration, small DUV deviation; when mixing colors or changing color temperature, CRI, color saturation index, and television color rendering index remain unchanged; supports camera light sensitivity curve correction; 16 built-in color swatch selections

Dimming Curve: Linear, Square, Inverse Square, S-Curve, 4 types total

Control Modes: Color swatch mode, color wheel mode, primary color control mode, color temperature mode, dynamic effect mode

Channel Modes: 5 standard DMX channel modes (2CH CCT, 3CH HSI, 4CH GEL, 6CH RGBWW, 3CH Effect)

Effect Modes: Built-in 16 automatic effects (sound control, strobe, alarm, lightning, police car, candlelight, TV, bad bulb, disco, SOS, etc.)

Signal Function: Supports signal hold function

Language Setting: Chinese/English bilingual one-key switch

Light Type: Soft light

Housing Material: Aluminum alloy

Protection Rating: IP20

Control Protocol: DMX512 (address 1~512 adjustable), RDM

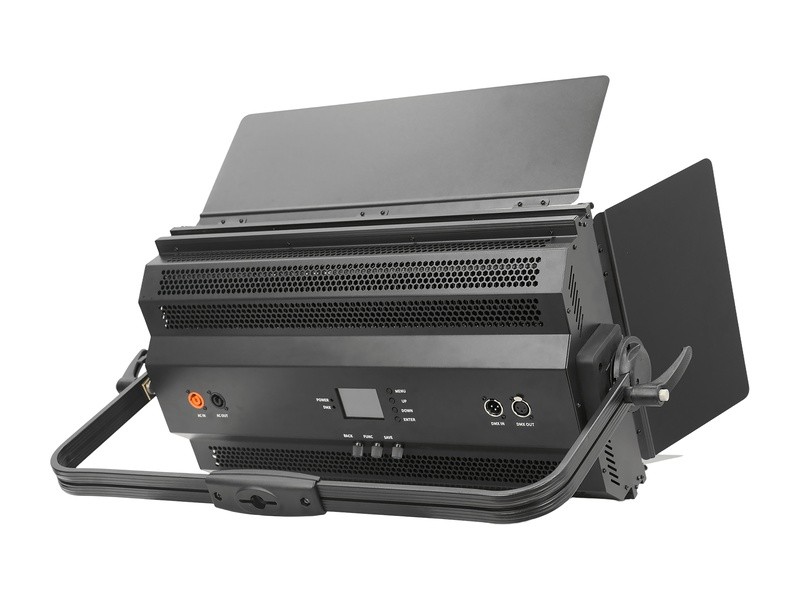

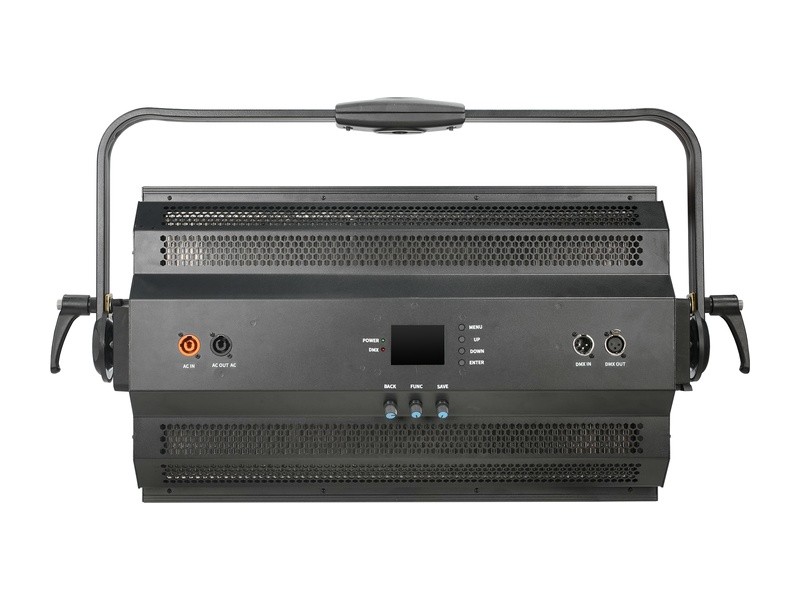

Control Panel: LCD display with dimming and color temperature adjustment knobs

Display Operation: Touch screen + physical buttons/knobs integrated operation

Fixture Settings: Fan auto/silent/full speed modes, screen normal/reverse display switch, auto screen off, screen touch switch, factory reset function

Status Display: Real-time display of signal status, high temperature alarm, accumulated LED hours, device information, error log

Dimensions: 815*520*145mm

Weight: 14.15kg

Applicable Scenarios: Studio, live streaming room, film and television production, stage lighting, conference lighting, etc.
